Segmentation

Graphical User Interface (GUI) Usage

To begin the segmentation process, launch the segmentation interface. This will open the main ChronoRoot monitor window.

The interface is divided into the Header (Configuration) and the Table (Monitoring). Hover over any button to see a detailed tooltip explanation of its function.

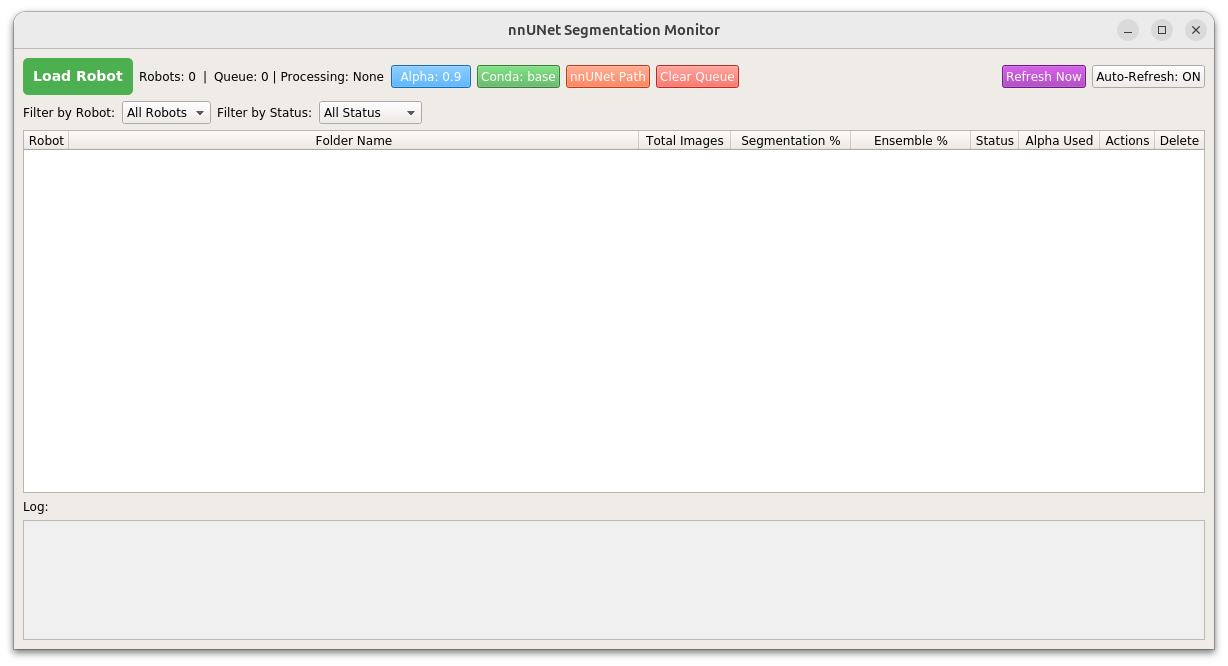

Segmentation Interface Main Window

1. Configuration & Setup

Before running the pipeline, configure your parameters using the top bar:

  • Load Robot: Imports data from your experiment folders. This supports multi-selection—you can select multiple robot folders at once in the dialog.
  • Remove Robot: Unloads the currently filtered robot from the view (does not delete files from disk).
  • Model Selector: Choose the appropriate species model (e.g., Arabidopsis or Tomato). The list automatically populates from the models/ directory.
    • Note: Changing the model automatically sets the recommended Alpha value.
  • Alpha: Defines the parameter for the weighted average trailing used in post-processing to ensure temporal stability.
  • Fast Mode: If checked, disables Test-Time Augmentation (TTA). This results in a 3x speed increase with a minor trade-off in segmentation precision.
  • Hide Empty Folders: Hides folders that contain no images to declutter the interface.
  • Conda: Specifies the Anaconda environment name (Default: ChronoRoot).

2. Loading Data

Begin by loading your dataset. Click Load Robot and navigate to your experiment folder. In this demonstration, we load 4 raspberry pi modules where each folder contains one or more time-lapse experiments.

Segmentation Interface Load Robot

3. Monitoring Status & Mismatches

Once loaded, the table displays the progress of every folder. The Model - Alpha column shows exactly which parameters were used to generate the existing results.

The Status column uses color-coding to indicate the current state:

Standard Statuses:

  • Grey (Not Started): Ready to process.
  • Yellow (Queued): Waiting for a worker thread.
  • Light Yellow (Segmenting): Neural network inference is active.
  • Purple (Postprocessing): Temporal refinement is active.
  • Green (Complete): Both segmentation and post-processing finished successfully.
  • Orange (Stalled): The process hasn't updated in a long time (e.g., due to a power outage).
  • Red (Error): The process failed (check the log panel for details).

Mismatch Statuses: These warnings appear in Gold when the settings currently selected in the GUI do not match the metadata of the processed folder:

  • Different Alpha: The folder was processed with an Alpha value different from the one currently set in the top bar.
  • Different Model: The folder was segmented using a different model species than the one currently selected.

4. Context-Sensitive Actions

The Actions column automatically adapts based on the status to suggest the most logical next step:

  • Start Pipeline: Runs the full process for new folders.
  • Resume: appears if a process is Stalled or had an Error, allowing you to continue from the last saved image.
  • Update Alpha: appears if the status is Different Alpha. Clicking this runs only the post-processing step with the new value (fast).
  • Rerun Pipeline: appears if the status is Different Model. This re-runs the entire segmentation using the new model.
  • Postproc Only: appears if the status is Different Model and Alpha. This re-runs only the post-processing step with the new Alpha.
  • Kill Process: appears if a job is currently running, allowing you to force-stop it.

(Far Right) Clear Results: This button permanently deletes the segmentation output folder for that row, allowing for a completely fresh start.

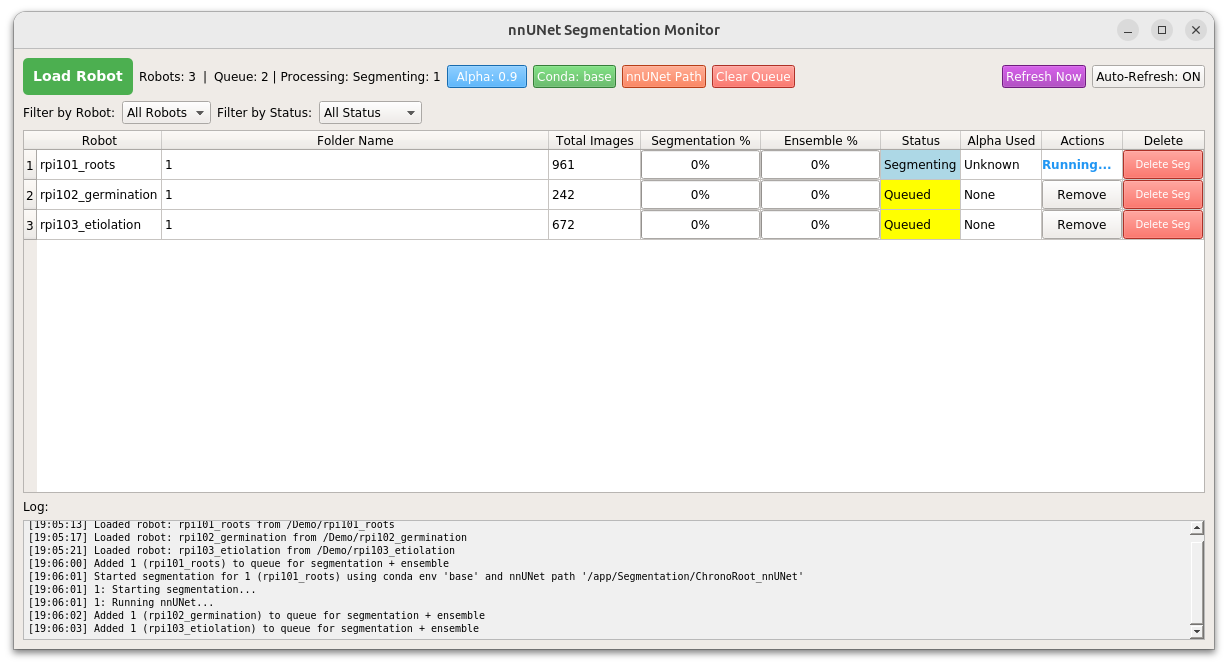

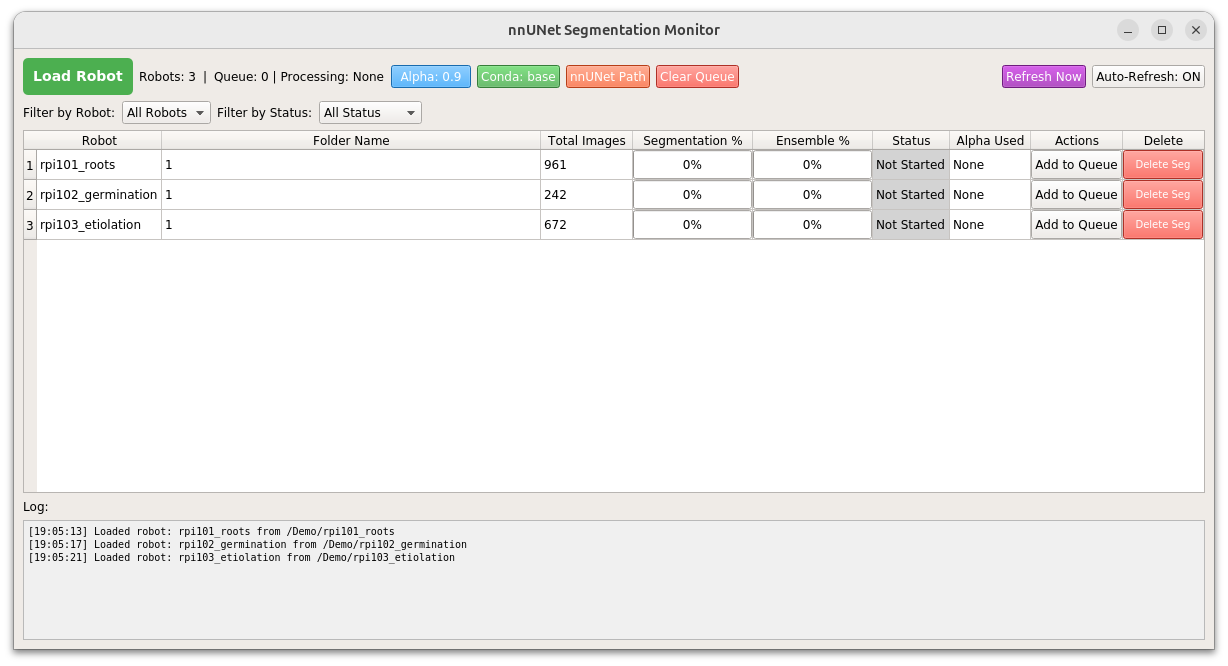

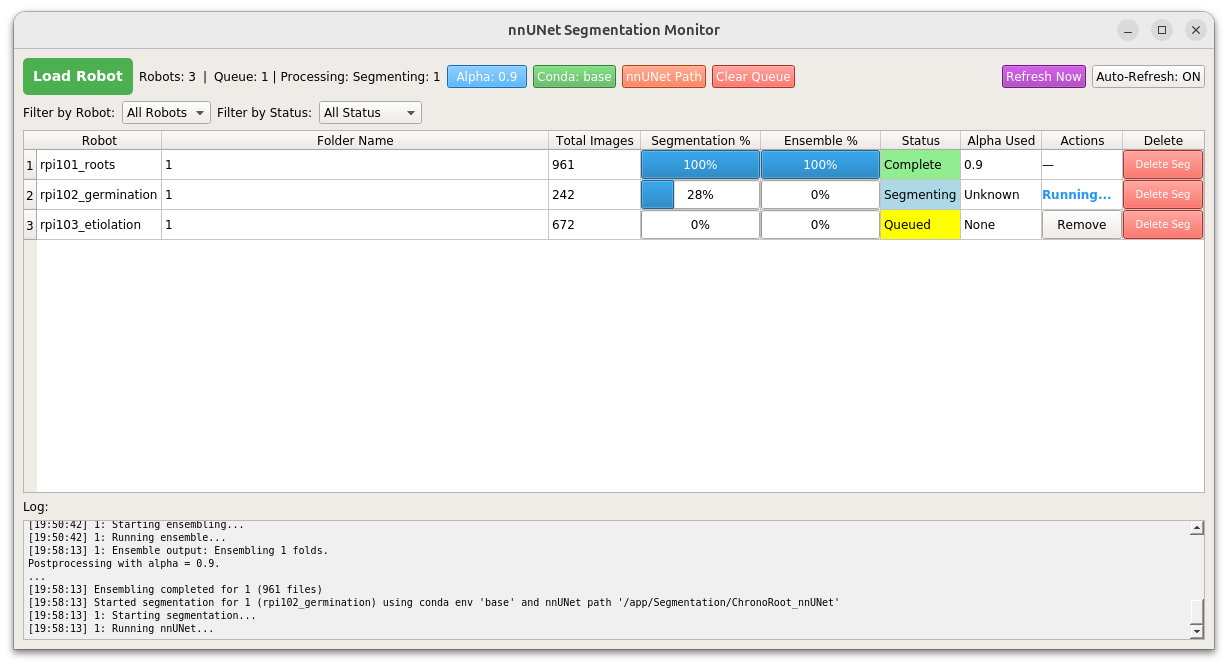

Segmentation Interface Loaded Images Segmentation Interface Queue Segmentation Interface Queue progress

Command Line Interface (CLI) Usage

If you prefer working in a headless environment, automating tasks, or simply wish to avoid the graphical interface, you can perform segmentation directly via the command line using cli.py.

Prerequisites: Before running the commands below, ensure you have loaded the ChronoRoot environment.

Basic Usage

The basic syntax requires pointing the script to your input folder and specifying the model name.

python cli.py /path/to/your/images --model Arabidopsis

Common Examples

1. Standard Arabidopsis Segmentation Runs the default segmentation for Arabidopsis using the GPU.

python cli.py /path/to/dataset --model Arabidopsis

2. Tomato Segmentation in Fast Mode Use this for Tomato datasets if you want faster results (skips test-time augmentation).

python cli.py /path/to/dataset --model Tomato --fast

3. Custom Post-processing If you need to adjust the Alpha parameter (weighted average trailing) specifically for your dataset:

python cli.py /path/to/dataset --model Arabidopsis --alpha 0.90

Argument Reference

Argument Description GUI Equivalent
input Required. Path to the folder containing images. "Load Robot"
--model, -m Required. The specific model to use (must match a folder in models/). "Species selector"
--fast Disables test-time augmentation for 3x speed (slight performance cost). "Fast Mode"
--alpha, -a Set the alpha parameter for post-processing logic. "Alpha"
--device Specify hardware: cuda (default), cpu, or mps. N/A
--postprocess-only Skip segmentation and rerun post-processing on existing results. "Actions -> Postproc Only"
--resume Resume a stopped run using existing metadata. "Actions -> Resume Pipeline"

Output Structure

The CLI will create a Segmentation folder inside your input directory, organizing results exactly as the GUI does: input_path/Segmentation/Fold_0
